CFM-PC hinges with integrated electric cable

Jul 10, 2025

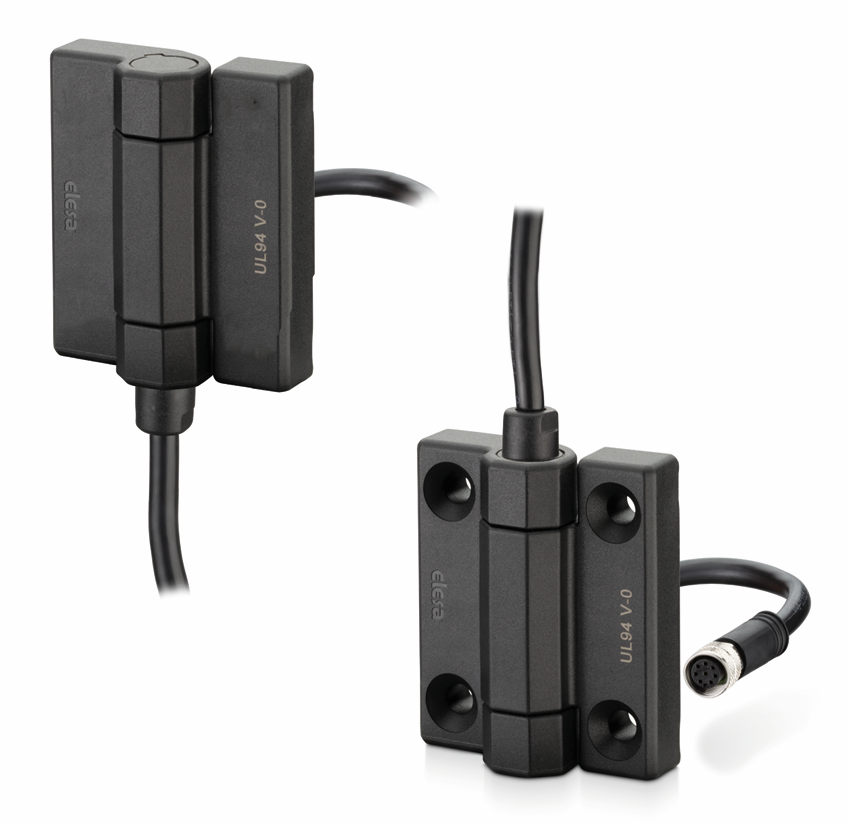

Made of glass-fibre reinforced polyamide based (PA) technopolymer certified self-extinguishing UL-94 V0, with a rotating pin in glass-fibre reinforced polyamide-based technopolymer (PA), CFM-PC hinge with integrated electric cable has been developed to allow the passing of the electric current from the jamb to the door.

EXECUTIONS

The standard hinge is available with pass-through holes for countersunk head screws (-SH) or nickel-plated brass bushings with threaded blind hole (-B). The executions are:

  • CFM-PC-C-A: 8-pin cable with top axial output, length 3.5 or 4 m and 8-pin cable with female connector with rear output, length 1.5 or 1 m
  • CFM-PC-C-C: 8-pin cable with bottom axial output, length 3.5 or 4 m and 8-pin cable with female connector with rear output, length 1.5 or 1 m.
  • CFM-PC-F-A: 8-pin cable with top axial output, length 3.5 and 8-pin cable with rear output, length 1.5 m.
  • CFM-PC-F-C: 8-pin cable with bottom axial output, length 3.5 and 8-pin cable with rear output, length 1.5 m.



ADVANTAGES

This product offer several advantages:

  • It eliminates the presence of exposed and unsightly cables and "cable gland" bridges.
  • Protects cables during door or structure movement, ensuring they do not get damaged or caught on any obstacles.
  • The compact size, various mounting and cable output options make this product easy to install.
  • Suitable for portable or laboratory testing equipment that is frequently moved.
  • The 8-pin cable allows the user to interface with various devices such as light points, electric locks, and any handles with electrical switch.
  • The CFM-PC hinge can be combined with one or more complementary hinges CFM-PCN or handles with electrical switch EBR-SWM, EBR-SWB and M.2000-SWM.



USE WITH OTHER ELESA+GANTER PRODUCTS

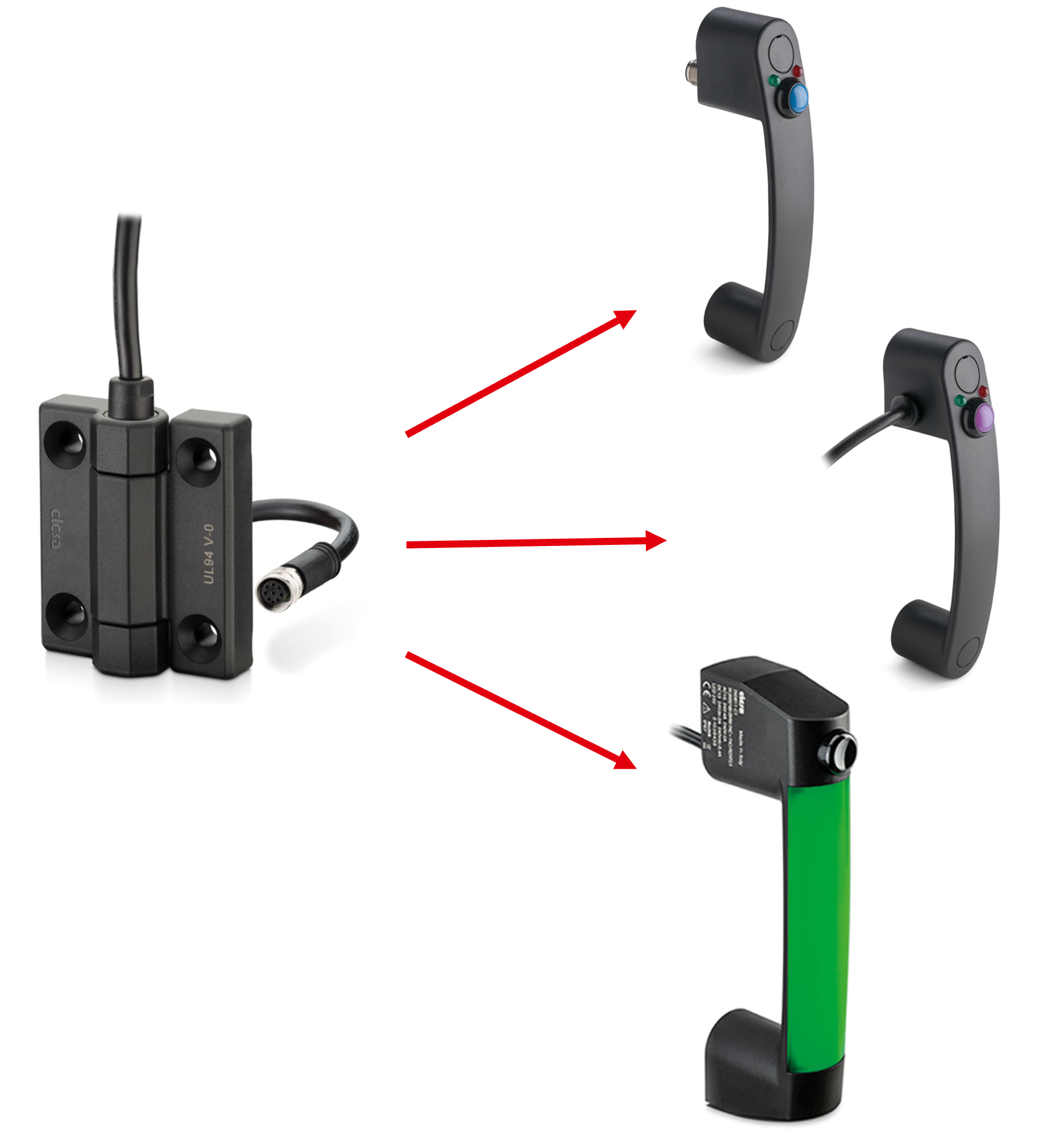

CFM-PC hinge can be combined with handles with electrical switch like EBR-SWM, EBR-SWB and M.2000-SWM.
