GN 738.5

Threaded Plugs

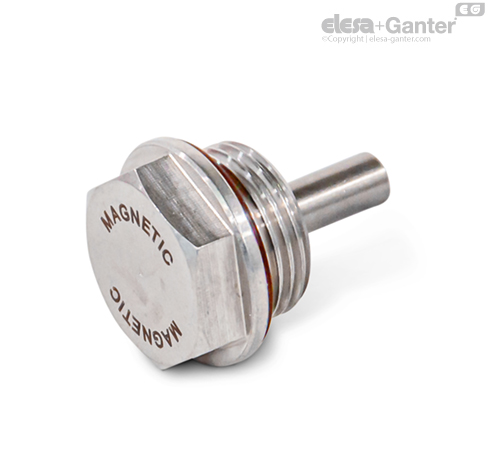

Stainless steel magnetic plugs GN 738.5 attract iron particles which might be floating in the fluid. The stainless steel makes them suitable for use in particularly aggressive environments.

To avoid breakage or demagnetization, the round magnets are fitted with a plastic distance and protection tube. This tube has to be removed prior to installing the plug.

The seal is embedded in a radial recess, and thus cannot be lost or squeezed out during tightening.

The outer diameter d₁ of stainless steel threaded plugs is matched to screw-in holes for pipe fittings according to DIN 3852.

• More Information on Retaining Magnets

• Other thread sizes

• With acrylonitrile butadiene rubber (NBR) seal GN 738.4

• Elastomer Characteristics

• Stainless Steel Characteristics
