Specification
Types
- Type A: with contrast screen
- Type B: without contrast screen
Body
Stainless Steel AISI 303
Contrast screen (Type A)
Technopolymer (Polysulfan)
Circlip (Type B)
Stainless Steel AISI 301
- temperature resistant up to 100 °C
- Sealing ring rubber NBR (Perbunan ®)
Information

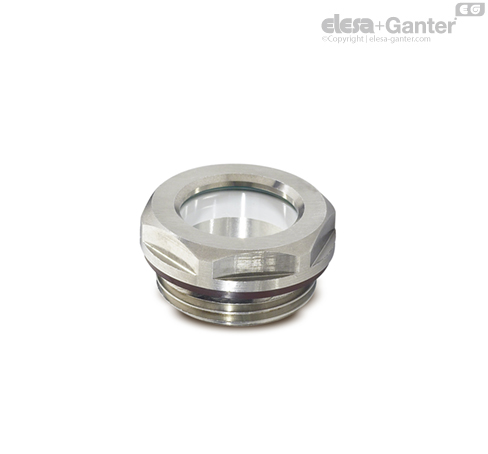

Stainless Steel-Oil level sight glasses GN 743.4 offer genuine glass of high stability and scratch proof. The sealing is achieved with an O-ring on the periphery and not on the face edge of the glass. Leak tightness is therefore not affected by axial pressures.
The outside diameter of these oil level sight glasses with recessed hexagon is chosen to match mounting holes for tube connections according to DIN 3852.
The seal is housed in a groove and it can therefore not be lost. In addition, this groove prevents the seal from being extruded when the sight glass is tightened.
Stainless Steel-Oil level sight glasses GN 743.4 can be used on pressurised oil tanks. Tests regarding maximum pressure are available on request.
