Specification
Types
- Type A: Fitting with female thread on both ends

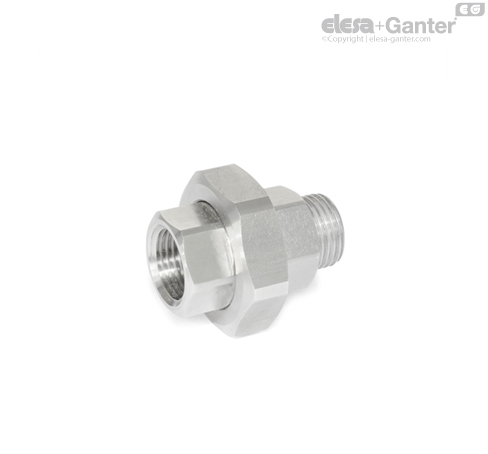

- Type B: Fitting with female / male thread
Housing
Stainless Steel AISI 304 NI
Strainer
Stainless Steel mesh
AISI 304
Strainer bezel
Plastic (Polyamide PA)
- temperature resistant up to 100 °C
O-ring
Rubber NBR (Perbunan)
Information
GN 7405 Stainless Steel-Strainer fittings are suited for assembly into piping systems as upstream or downstream protection devices. Depending on the mesh size, particles carried by liquid or gaseous media can be prevented from passing through. Units or housing interiors are thereby protected from foreign objects which can impair function or durability due to their size.
The housing is separately bolted through a union nut, making assembly/disassembly easier and allowing the strainer insert to be exchanged if necessary.
Replacement or maintenance Stainless Steel-Strainers are available under the GN 7403.1 standard.
