Specification
Sensitivity
- Type 10: Angle minutes, bubble move by 2mm (only Version ALS)
- Type 40: Angle minutes, bubble move by 2mm (only Version KT)
Identification no.
- No. 1: without contrast ring
- No. 2: with contrast ring (only version KT for d=12...18)
Aluminium, anodized, natural colour ALS /
Viewing window, glass
Plastic, white KT /
Viewing window, transparent
- coulourless-transparent K
- green-transparent G (only Version KT)
Information

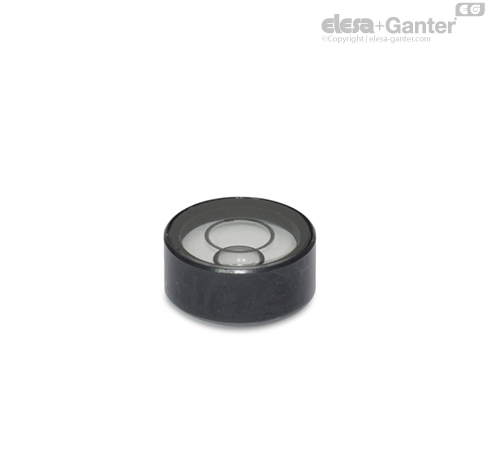

Due to their cylindrical design, bull´s eye levels GN 2281 are suitable for installation in plates and housings where they serve to check the horizontal position of jigs, machines and devices.
Bull´s eye levels are not aligned, i.e. there is no reference to the external outline of the level. The vertical position must be ensured by aligning the holding building element.
The black housing of the version ALS creates a reflection at the edge of the bubble which significantly improves the readability. Version KT is available with contrast ring inside the air level housing (Identification no. 2) which creates the same effect.
Alternatively, the contrast can also be improved by a dark surface inside the mounting bore hole.
Technical information
Definition of terms
A spirit level is hollow body filled with a fluid and a gas bubble which is used to check the horizontal position of an object. The position of the gas bubble in the fluid shows the angle and the direction at which the object is inclined in relation to the horizontal level.
The function
The hollow body containing the fluid and the gas bubble has a defined radius at its topic side, causing the gas bubble to float by its buoyancy always to the highest point.
The transparent upper section normally carries markings or a circle centric to the biddle position. If the gas bubble is centered precisely inside the merking and if the air level is properly adjusted, the object to be checked is in the horizontal position.
Types of spirit levels
Spirit levels are available as bull´s eye levels or screw-on levels.
Bull´s eye levels simultaneously measure the angle of inclination and the angular position, e.g. of a certain level, whereas screw-on levels indicate the angle of inclination in one dimension only along the axis of the level.
Sensitivity
The sensitivity of spirit levels is given as angle of inclination, e.g. 30 angular minutes or 0.5 degrees. This is the angle of inclination by which the spirit level must be tilted to make the bubble move by 2 mm. A spirit level with a sensitivity of 6 angular minutes therefore has a higher sensitivity than a spirit level with a sensitivity of 30 angular minutes.
Angle of inclination and difference in altitude
Sensitivity is sometimes also given in millimetre per metre, i.e. as difference in altitude per unit of the length. See also the reference table opposite.
| Difference in altitude | Angle w | - |
| in milimetre per metre | in angular minutes | Degree, decimal |
| 0.3 | 1 | 0.0167 |
| 0.9 | 3 | 0.0500 |
| 1.7 | 6 | 0.1000 |
| 2.9 | 10 | 0.1667 |
| 5.8 | 20 | 0.3333 |
| 8.7 | 30 | 0.5000 |
| 11.6 | 40 | 0.6667 |
| 14.5 | 50 | 0.8333 |
| 17.5 | 60 | 1.0000 |
