Specification
Types
- Type A: Fixing hole parallel to the spindle axle
- Type B: Fixing hole vertical to the spindle axle
- Type S1: Mounting with hexagon head screw
Coding
- Version SR: with scale 0,1...0,9, 50 graduations ascending, clockwise
- Version SL: with scale 0,1,...0,9, 50 graduations ascending, anti-clockwise
Body
Steel
matt chrome plated
Spindle
Steel
blank
Control knob
Aluminium
anodized, black
Hexagon head screw
Steel, zinc plated, blue passivated
Scales engraved with laser precision
Cover
Plastic, light grey
Information

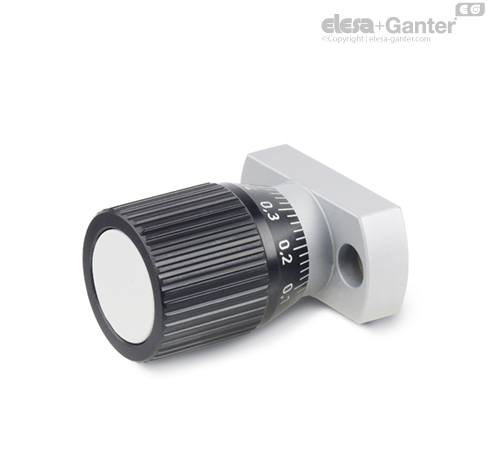

Control knobs with adjustable spindle GN 727 allow precise adjustment or aligning i. e. of a positive stop. The spindle thread is without backlash.
The graduations on the control knob are non-abrasive and well legible.
The light grey cover shrouds the fixing components as well as the shaft end.
Regarding design, numbering run, numbering position and mubering sequence of the scale please see the layout for scale rings on the order sheet "How to order graduations" .

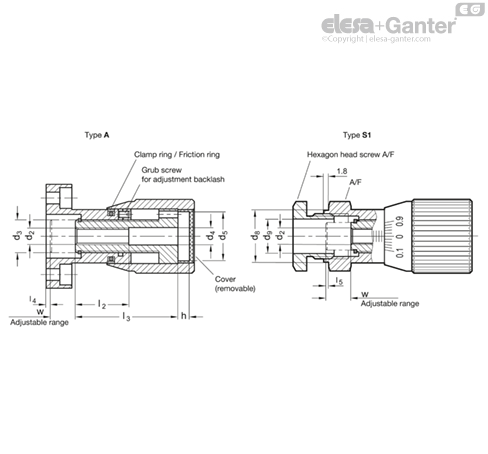

Complementary dimensions with technical details
