GN 7247.6

Plates

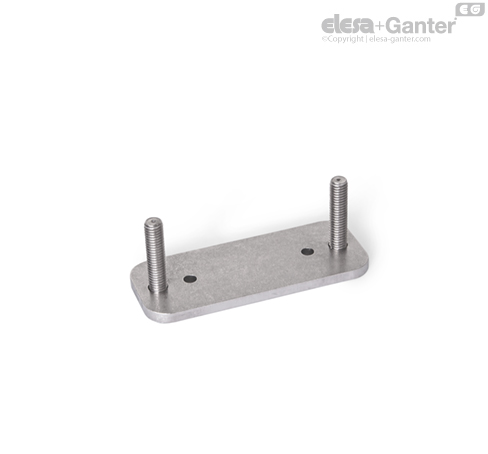

Stainless Steel-Plates GN 7247.6 are designed with appropriate dimensions to be used as accessories for the fastening flanges of hinges GN 7241  GN 7243  and GN 7247 .

The Stainless Steel-Plates are fastened from the outside via through-holes in the housing wall or alternatively by welding to the inside of the wall. This results in effective protection against vandalism, and the outsides of the housing remain free of attachments that do not match the design or that should be avoided entirely in the interests of easy cleaning.

They make threaded holes, bolts and washers unnecessary during installation. This eliminates the labor-intensive pre-installation of such parts as well as the need to hold them in place during tightening or loosening.

The holes d₂ receive tensioning or positioning pins, if necessary, making it easy to position the plates and the multiple-joint hinges.

• Stainless Steel characteristics

• other threaded stud lengths

• other plate sizes

• other plate geometries
