GN 7247.2

Stainless Steel-Spacer plates

Tolerances of chamfers, different sheet metal thicknesses or the use of seals could mean that the mounting surfaces of multiple-joint hinges on the frame and door do not have the desired separating distance.

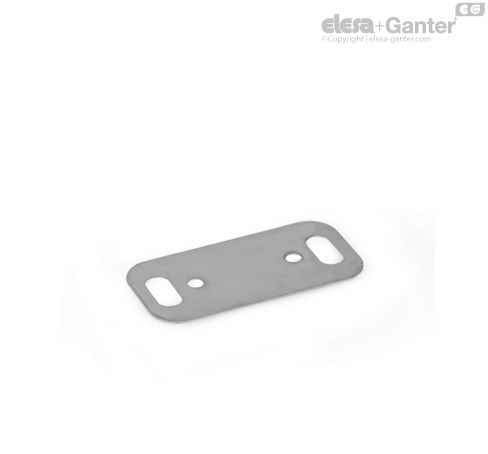

Stainless Steel-Spacer plates GN 7247.2 are designed with appropriate dimensions as accessories for multiple-joint hinges GN 7241  GN 7243  and GN 7247 . They allow for adjustment in the third plane during mounting. Shimmed individually or in combination, they provide the desired position or height compensation on the fastening surfaces.

The holes d₂ receive tensioning or positioning pins, if necessary, making it easy to position the spacer plates and the multiple-joint hinges.

• Stainless Steel characteristics

• other plate thicknesses
