Specification
Types
- Type A: Without rest position, without lock nut
- Type AK: Without rest position, with lock nut
- Type R: With rest position, without lock nut
- Type RK: With rest position, with lock nut

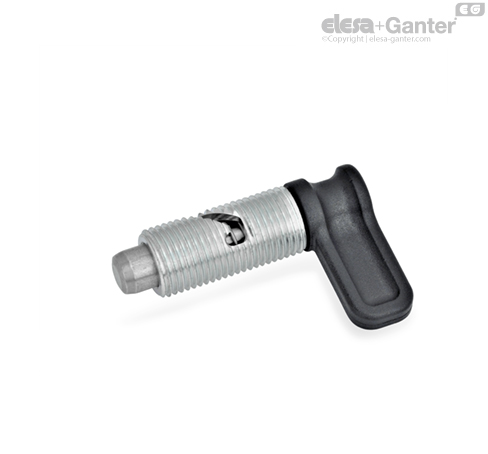

- Type S: With safety-rest position, without lock nut
- Type SK: With safety-rest position, with lock nut
Guide
Steel zinc plated, blue passivated
Plunger pin
Latch
Plastic, Polyamide (PA)
Information
Cam action indexing plungers GN 712 are used in such applications where the plunger pin must not protrude continually. When turning the cam by 90° resp.120° degrees in anti-clockwise direction, the plunger pin is moved through a curved opening in the body. After that, the plunger pin is retracted.
Depending on the type, the plunger pin is moved back by a pressure spring in its original position (Type A), is held in retracted position (Type R), resp. is secured against accidental operation (Type S). In order to move the plunger pin, this safety version requires an additional lifting of the latch.
