GN 7336.7

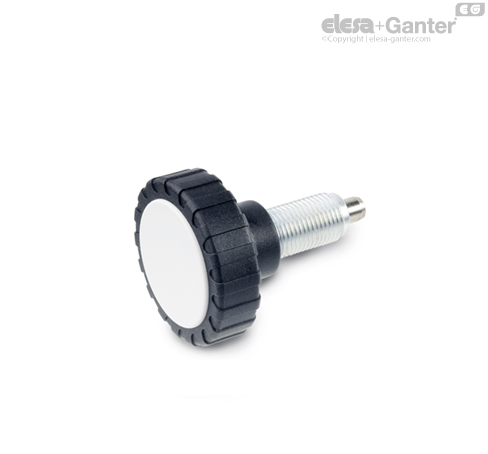

Clamping knobs with indexing plungers

Clamping knobs with indexing plunger GN 7336.7 are used for positioning, securing and clamping adjusting elements at the same time.

The axial movement of the handle (pulling) pulls the indexing pin from the engaged position against the spring force, with the star knob at the same time remaining connected with form-lock to the clamping screw via a hexagonal element, allowing both clamping and releasing.

• Range of indexing plungers

• ISO-Fundamental Tolerances

• Stainless Steel characteristics

• Plastic characteristics

• Load rating information
