Specification
Types
- Type LKU: Fixing from the left, with spring plunger
- Type RKU: Fixing from the right, with spring plunger
- Type BKU: Fixing from both sides, with spring plunger
- Type L: Fixing from the left, without spring plunger
- Type R: Fixing from the right, without spring plunger
- Type B: Fixing from both sides, without spring plunger
Zinc die casting
nickel plated
Spring plungers GN 614-KU
Housing
Plastic (Polyacetal POM)
temperature resistant up to 50 °C
Ball Stainless Steel AISI 420C, hardened
Information

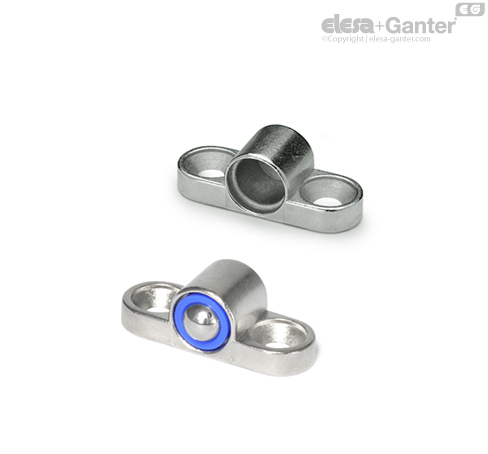

Holder for spring plungers / Side thrust pins GN 614.1 are used for arresting and as press-on or press-off elements. The easy attachment using one or two countersunk screws also allows its use where a location borehole with the tolerance field H7 for the spring plunger would not be possible from its size and manufacturability.
Side thrust pins GN 614.1 consist of a holder for spring plungers and a Stainless Steel-Spring plungerGN 614 of type KU.
For types R, L and B, only a „empty“ holder for spring plungers (without spring plungers) are supplied which can then be used together with all other design variants of GN 614-6 and GN 614-8 of the types KD, MS and NI.
