Specification
Types
- Type A: Operation with knob, sleeve black, without lock nut
- Type AK: Operation with knob, sleeve black, with lock nut
- Type AR: Operation with knob, sleeve red, without lock nut
- Type ARK: Operation with knob, sleeve red, with lock nut
- Type B: Operation with key, sleeve black without lock nut
- Type BK: Operation with key, sleeve black, with lock nut
Threaded body
Steel zinc plated, blue passivated
Pin
Stainless Steel AISI 303
Spring
Stainless Steel AISI 301
Knob
Plastic (Polyamide PA)
Sleeve
Plastic (Polyamid PA)
Information

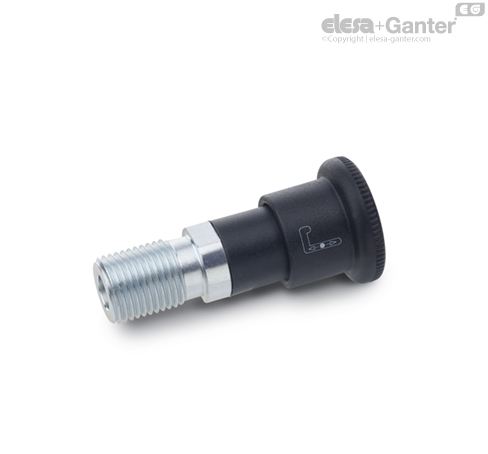

If not operated, the plunger of the locking plungers GN 816.1 protrudes. To retract, move against the spring force and hold in the end position by turning by 90°.
The shape of the cam curve secures the plunger against accidental operation.
When operating button (Type AR / ARK), the visible red covering sleeve indicates the locking status: Indexing pin does not protrude.
For the execution with operation with key (Type B / BK) a key is required to move the plunger. In this execution, a cover sleeve provides additional security and safety from unauthorized removal of the locking plunger. The cover sleeve also provides additional protection against malfunction caused by dirt.
Accessory
Keys GN 816.1-K
Plastic (Polyamide PA)
(All locking plungers have the same key)
Assembly instruction
Version with key (Type B / Type BK)
