GN 2342

GN 2342 Stainless Steel-Assembly pins are characterized by their use in diverse applications.

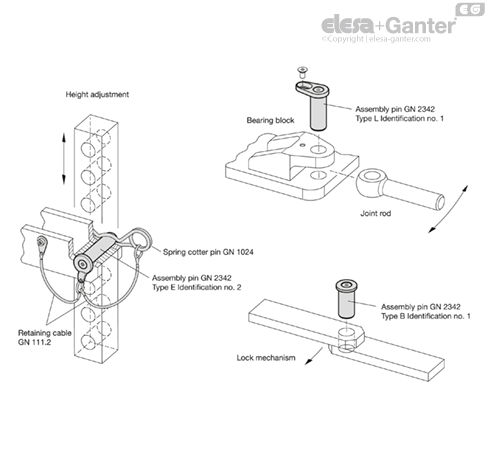

Depending on the requirement there are three washer types to choose from, which place the assembly pin in an axial position in its insertion direction. With the washer with eyelet (Type E) the assembly pin and a corresponding GN 1024 (see page  spring cotter pin can be secured to prevent loss using a retaining cable or ball chain. The washer with mounting shackle (Type L) simultaneously acts as loss protection and anti-rotation protection.

Assembly pins according to identification no. 2 are secured against falling out via a transverse drill hole which is aligned to the GN 1024 (see page

• Spring cotter pins GN 1024

• Ball chains GN 111

• Retaining cables GN 111.2

• Key rings GN 111.3

• List of Lock Pin Types
• Load Capacity
• Stainless Steel characteristics
