GN 214.6

Locking Pins

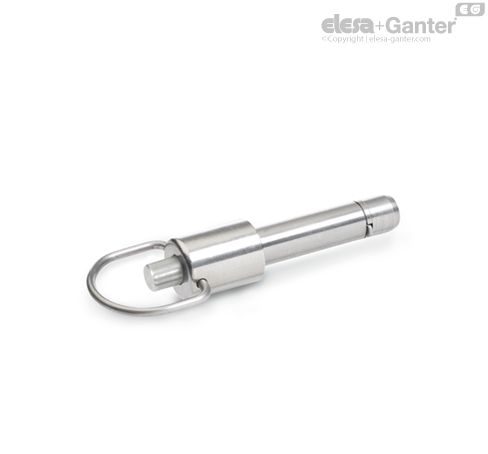

Stainless Steel-Locking pins with axial lock GN 214.6 are used for quick fixing, connecting and locking of various jig and fixture systems. A typical application is location pins which have to be often removed and re-placed again.

The rectangular pawls made of Stainless Steel sheet metal keep the locking pin in an axial position in the bore. It can be retracted by pressing the button, once released it returns the pressure spring into its locking position.

The version with swivelling lifting ring is ideal for the use in confined spaces.

The load values given in the above table at shear stress are theoretically obtained and indicative only. They are non-binding recommended values and rule our any liability. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.

• Ball chains GN 111

• Stainless Steel-Ball chains GN 111.5

• Retaining cables GN 111.2

• Spiral retaining cables GN 111.4

• List of Lock Pin Types
• Load Capacity
• Stainless Steel characteristics
