Information

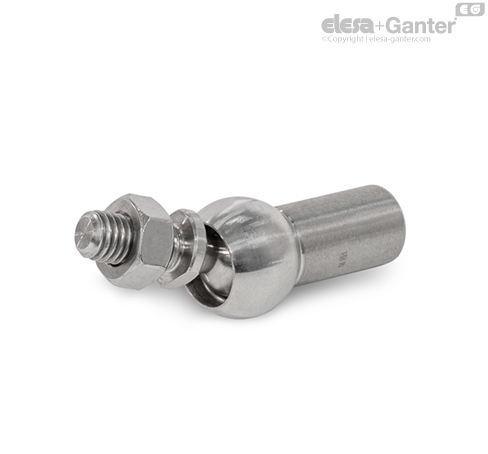

Axial ball joints GN 71802.1 are used in linear drives and lifting systems, for example, to transmit compressive forces in the axial direction, thereby compensating for angular offsets. They consist of a ball shank DIN 71803 and an axial ball socket.
A snap ring holds the axial ball joint together under tension up to the specified minimum pull-off force. This force must be overcome for assembly and disassembly.
To protect the axial ball joints from dirt and to keep lubricating grease in the joint, dust caps GN 710 as an accessory. The hex nut is included in the scope of delivery.
