GN 120.1

Opening Handles

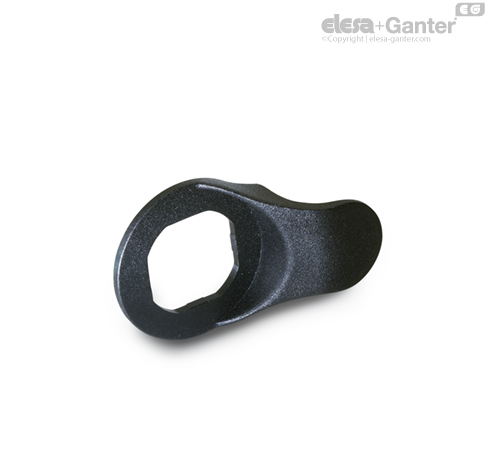

Opening handles GN 120.1 are simple operating elements which are used in combination with key or push-button actuated locking devices. They have a low installation height and can be mounted as required in a 90° grid pattern together with the lock housing.

Please note: The clamping range A1 ... A9 and/or the latch distance A is reduced by the dimension „b“.

Opening handles GN 120.1 are suitable for the following latches and locking devices:

• Latches, lockable GN 115-L

• Latches, not lockable GN 115-NL

• Hook-type latches GN 115.8

• Latches GN 119

• Snap locks GN 315.1

• Rotary clamping latches GN 516

• Rotary clamping latches GN 516.1

• Stainless Steel-Rotary clamping latches GN 516.5

• Plastic characteristics
