Specification
Type (Base)
- Type A0: Without rubber pad
- Type A1: With rubber pad, clipped on, black
- Type A3: With rubber pad, vulcanized, black
Version (Screw)
- Version S: Without nut, external hex at the bottom
- Version SK: With nut, external hex at the bottom
- Version U: Without nut, hex socket at the top and wrench flat at the bottom
- Version UK: With nut, hex socket at the top and wrench flat at the bottom

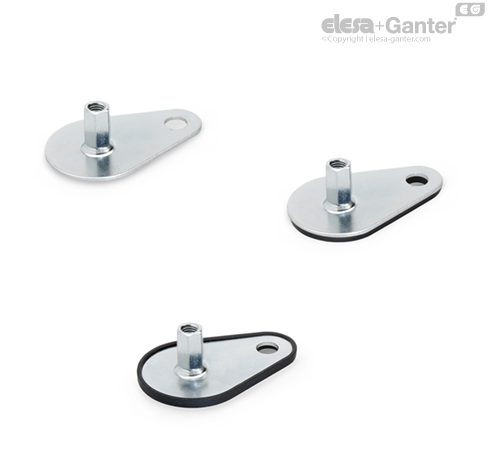

- Version X: External hex with internal thread
Base plate
Steel
Zinc plated, blue passivated
Threaded stem
Steel
Zinc plated, blue passivated
Hex nut ISO 4032
Steel
Zinc plated, blue passivated
≈ 80 Shore A
70±5 Shore A
Information
Leveling feet GN 42 can be used in a host of combinations of base plates and adjustable spindle versions.
The leveling feet can be screwed to the mounting surface use the fixing lug, which prevents lateral shifting. Moreover, the types with the rubber pad protect sensitive surfaces.
The leveling feet are supplied fully assembled and are not removable.
Load Rating of Leveling Feet
| d1 | - | - | d2 | Static load Fs in kN | - | - |
| GN 40 | GN 42 | GN 42 | - | Versions of threaded stem | - | - |
| - | Drope shape | Rectangular shape | - | S / SK | U / UK | X |
| 40 | - | - | M 8 | 7 | - | 7 |
| 40 | - | - | M 10 | 7 | - | 7 |
| 40 | - | - | M 12 | 7 | - | 7 |
| 40 | - | - | M 16 | - | 7 | 7 |
| 50 | 50 | - | M 8 | 8 | - | 8 |
| 50 | 50 | - | M 10 | 8 | - | 8 |
| 50 | 50 | - | M 12 | 8 | - | 8 |
| 50 | 50 | - | M 16 | - | 8 | 8 |
| 60 | 60 | - | M 8 | 8 | - | 8 |
| 60 | 60 | - | M 10 | 10 | - | 10 |
| 60 | 60 | - | M 12 | 10 | - | 10 |
| 60 | 60 | - | M 16 | - | 10 | 10 |
| 80 | 80 | 80 | M 8 | 8 | - | 8 |
| 80 | 80 | 80 | M 10 | 10 | - | 10 |
| 80 | 80 | 80 | M 12 | 12 | - | 12 |
| 80 | 80 | 80 | M 16 | - | 12 | 12 |
| 80 | 80 | 80 | M 20 | - | 16 | 16 |
| 80 | 80 | 80 | M 24 | - | 16 | - |
The static load bearing capacity given in the table rests on a test series in which the load has been applied perpendicular to the base plate (without rubber underlay). For the values given in the table, the strain relief may result in minor deformations of the base plate.
Bending and buckling stress which often occurs in practice results in a lower load bearing capacity of the adjustment spindle and may have to be taken into account.
Also, the spindle strength is assumed to be ≥ 500 N/mm2.
The details given on strength are nonbinding guide values without any liability. In general, they do not constitute a warranty of quality.
The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.
