Specification
Types
- Type W: Housing for angular gears
- Type T: Housing for T-gears
Aluminium gravity die casting
plastic coated
black, RAL 9005, textured finish SW
Thrust screws
Stainless Steel
Information

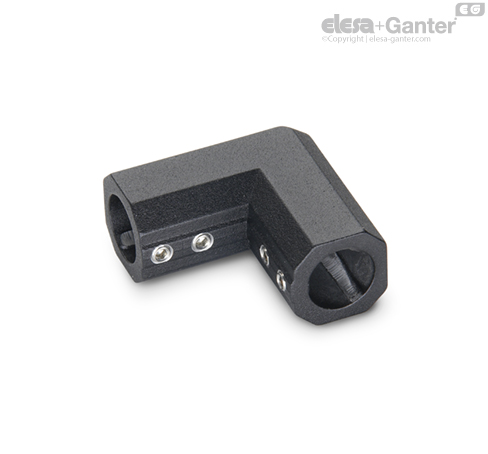

Housings GN 298 for angular / T-gears are used in connection with bevel gear wheels GN 297 and linear actuators / transfer units. The angular / T-gears are designed to deflect the rotary movement of a linear actuator / transfer unit by 90°.
An operating instruction with more details and specifications is included with every delivery.
Assembly of linear actuators

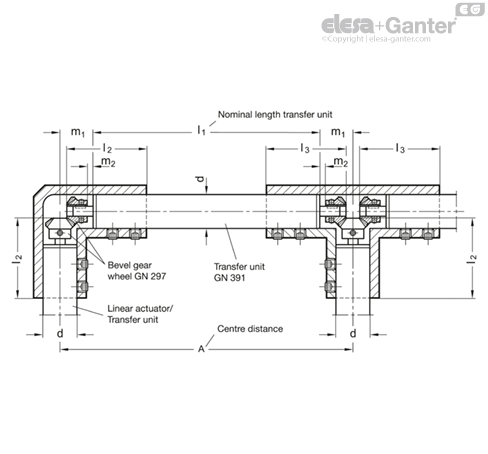

Assembly of linear actuators and transfer units with bevel gear wheels in housings GN 298
| d Ø Linear actuator / transfer unit | l2 | l3 | m1 | m2 | Bevel gear wheel | Housing | Length of the transfer unit GN 391: l1 = A - 2 x m1 |
| 18 | 41 | 40 | 20 | 4 | GN 297-17,5-K6 | GN 298-28-B18-W/T-SW |
| 30 | 58 | 57 | 26 | 1 | GN 297-26-K8 | GN 298-40-B30-W/T-SW |
| 40 | 75.5 | 73.5 | 32 | 1 | GN 297-35-K12 | GN 298-50-B40-W/T-SW |
| 50 | 90.5 | 87.5 | 32 | 1 | GN 297-35-K12 | GN 298-60-B50-W/T-SW |
Application examples
Two parallel sliding linear actuators GN 291 are connected with a transfer unit GN 391.

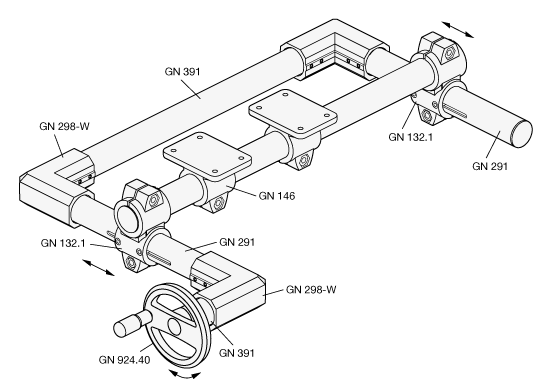

The angular housings GN 298-W including the bevel gear wheels GN 297 and another transfer unit GN 391 connect the handwheel with the system. The handwheel is placed in a rectangular position to the moving axes.
Two flanged linear actuator connectors GN 146.1 are moved parallel. For this two linear actuators GN 291 are connected with a transfer unit GN 391.
The T- and angular gear GN 298-T/-W including the bevel gear wheels GN 297 and another transfer unit GN 391 connect the handwheel with the system. The handwheel is placed in a parallel position to the moving axes.
