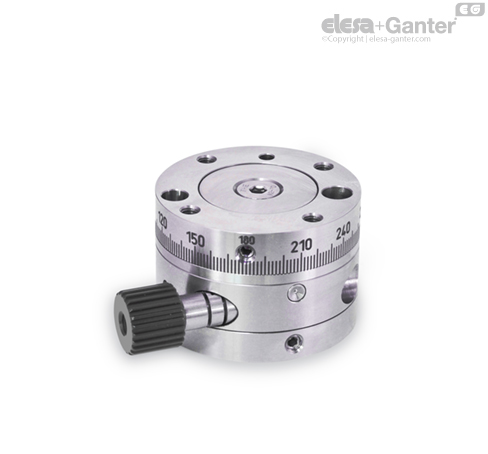

Rotary tables GN 900.6 is a turning unit for manual operation. To get the turning movement we use a high quality worm gear.

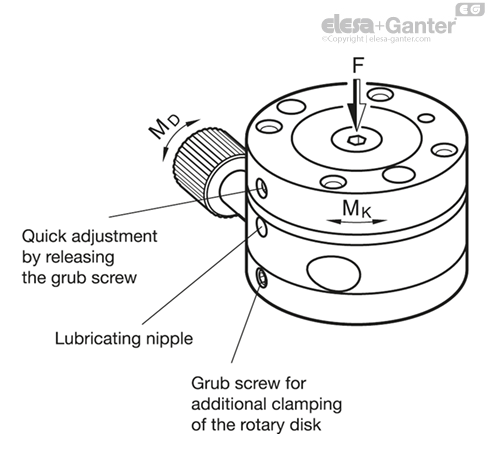

The rotary table is also fitted with a fastadjustment and for this purpose a grub screw on the side of the rotary disc has to be released. In addition the rotary disc can also be clamped via an easily accessible grub screw. In both cases internal conically shaped arresting components come into use.
- Mounting plate GN 900.4 (for clamping to an adjustable slide unit)
Further Technical information
| d1 | Rotating range | Concentricity tolerance | circular runout tolerance | max. entry torque MD | max. load capacity od rotary disc unclamped | max. load capactiy of rotary disc clamped MK | F max. in Newton |
| 55 | 0° | ± 0.02 | ± 0.02 | 1.5 Nm | 5 Nm | 10 Nm | 50 |
| 80 | 0° | ± 0.03 | ± 0.03 | 2.5 Nm | 5 Nm | 10 Nm | 100 |
