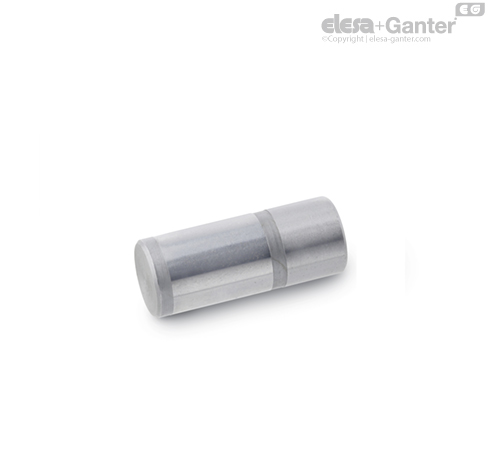

GN 771.1

Guide Pins

Guide pins GN 771.1 are used in combination with DIN 172 / DIN 179  guide bushings.

The shaft tolerance p6 guarantees a perfect pressfit in a mounting borehole H7. The spigot l₃ makes the installation easier.

• ISO-Fundamental Tolerances
