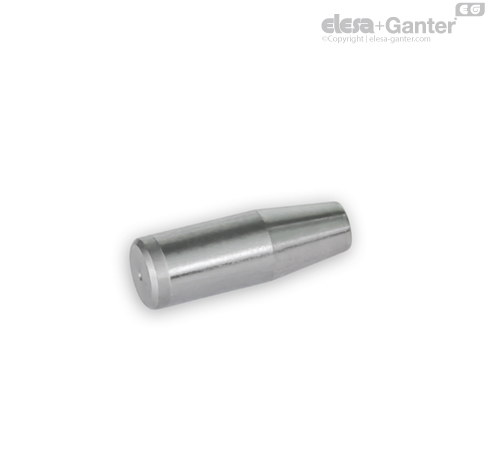

GN 771.2

Guide Pins

Guide pins GN 771.2 are used in combination with GN 172.1 / GN 179.1 guide bushings.

The shaft tolerance p6 guarantees a perfect pressfit in a mounting borehole H7. The spigot l₃ makes the installation easier.

• ISO-Fundamental Tolerances
