Specification
Housing
Steel, zinc plated
Hard ferrite HF
temperature resistant up to 200 °C
SmCo SC
Samarium, cobalt
temperature resistant up to 200 °C
NdFeB ND
Neodymium, iron, boron
temperature resistant up to 80 °C
Information

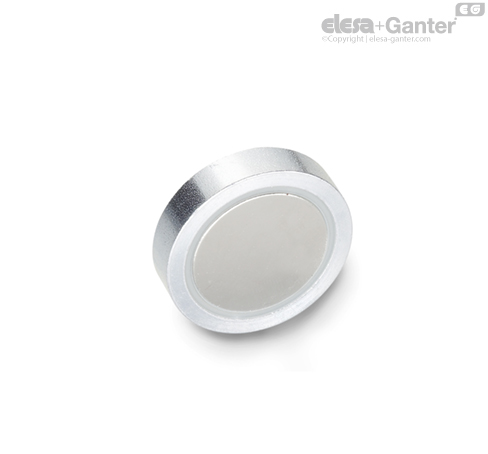

Retaining magnets GN 50.1 are combined with a steel housing and a plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
The retaining magnets are easy to fasten securely by side clamping, e.g. with a grub screw GN 913.2 .
