EWW-XX
EWW-XX
Handwheel
Technopolymer
Technopolymer

78711-R,20
78710-R,10
78712-R,50
orGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
Glass-fibre reinforced polypropylene based (PP) technopolymer, grey-black colour, matte finish.
IEL+x SOFT- in technopolymer coated with "soft-touch" thermoplastic elastomer (TPE), black colour, matte finish.
Black-oxide steel hub, H7 reamed hole.
Rear flange with internal crown gear wheel in acetal resin based (POM) technopolymer. Black-oxide steel screw and anchor pin.

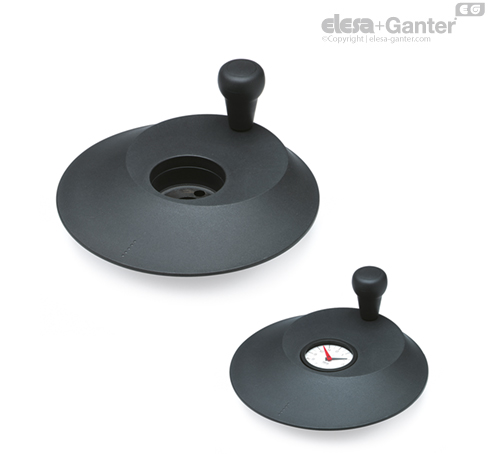

This steering handwheel has been designed to be mounted on control shafts of machines or equipment and especially for guiding lift trucks and handling vehicles.
The lowered profile of the steering handwheel makes it suitable for flush mounting on the control panel, thus reducing protruding parts to a minimum.
The steering handwheel can be used with a position indicator PA02, PA12 or PW12 to read steering positions.
See also "Assembly instructions" for positive drive indicators type P.
EWW-XX steering handwheel is suitable also for using with gravity indicators.
