Specification
Type
- Type EPV: Solid clamping arm, with clasp for welding
Coding
- Coding M: Magnetic piston
Body
Cast steel
Black lacquered
Other parts
Steel St 60
Zinc plated, blue passivated
Bearing pins
Case-hardened

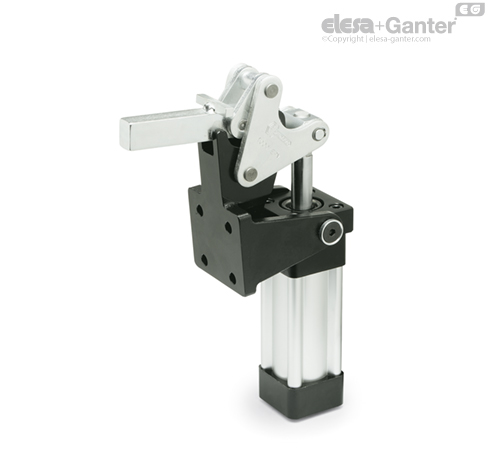

Double-action air cylinder
Max. pressure 6 bar
All moving parts
Lubricated with special grease
Solid moulded plastic handle sleeve
Red, oil resistant
Information
Toggle clamps GN 863 have been constructed in such a way as to make them easy to unmount. The bearing pins are axially fixed with circlips. This allows the clamping arm to be modified once it is dismantled, to suit any particular application.
To ensure an extended life of the mechanical parts as well as the air cylinders, the operating pressure should not exceed 6 bar and a compressed air maintenance unit should be installed upstream.
Toggle clamps GN 863 have a magnetic piston. In conjunction with sensors GN 3380, it is possible to detect the end position, such as for implementing machine controls.
