Specification
Types
- Type APV: Clamping arm with slotted hole, with two flanged washers
- Type CPV: Clamping arm with slotted hole, with two flanged washers, GN 708.1 spindle assembly
- Type EPV: Clamping arm with bushing
Coding
Coding M: Magnetic piston
Base
Steel, phosphate-treated
Bearing pins / bushings
Steel
hardened and ground
Double-action air cylinder
with adjustable end position damping
max. pressure 6 bar
All moving parts
lubricated with special grease
Information

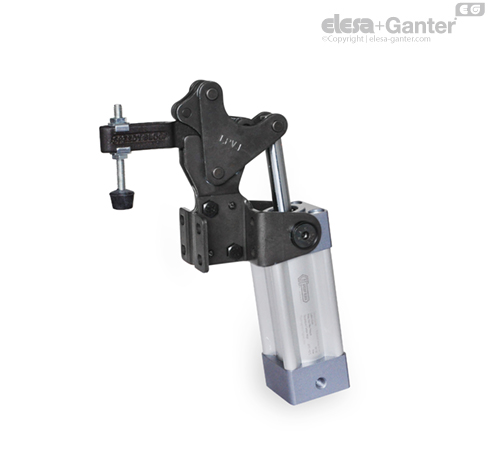

Toggle clamps „Longlife“ GN 962 are equipped with a reinforced body and hardened and ground bearing pins / bushings. This makes them suitable for applications in which substantial forces arise and a long service life is required.
To ensure an extended life of the mechanical parts as well as the pneumatic cylinder, the operating pressure should not exceed 6 bar. In addition, a compressed-air control unit should be mounted in the air intake line.
Toggle clamps GN 962 are equipped with a magnetic piston as standard. This makes end position detection possible in connection with sensors GN 3380.
