Specification
Types
- Type T: with mounting holes, without U-bolt latch, with catch
- Type T3: with mounting holes, with U-bolt latch, with catch
- Type TS: for welding, without U-bolt latch, with catch
- Type T3S: for welding, with U-bolt latch, with catch
Base / operating handle
Steel C22
Catch
Sheet metal
blackened
U-bolt latch / bearing pins
Steel St 37
zinc plated, blue passivated
All moving parts
lubricated with special grease
Information

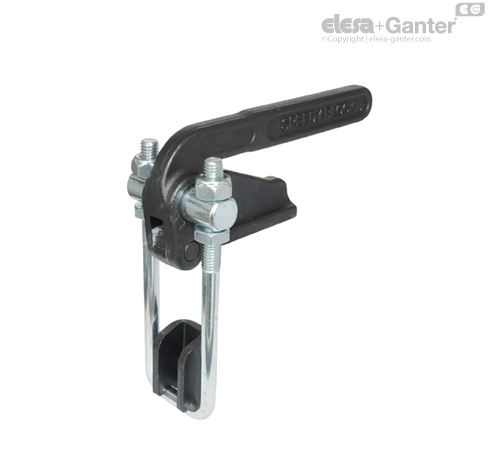

The U-bolt latch of GN 852.1 vertical hook type toggle clamps is adjustable within the adjusting range.
Once in the clamping position, the latch bolt is perpendicular to the clamping arm and to the mounting base of the toggle clamp.
In addition to the standard lengths of the U-bolt latches shown in the table, a variety of other lengths are also available under the GN 951.2 series.-
