Specification
Types
Bolt (Type W)
Steel zinc-plated, blue passivated
Grub screw DIN 913 (Type A)
Stainless Steel AISI 304
Grub screw DIN 915 (Type W)
Stainless Steel AISI 304
Information

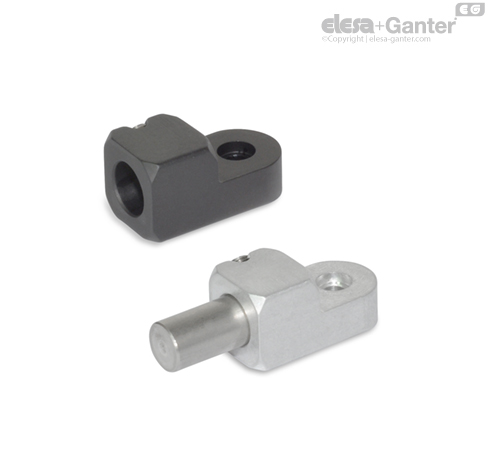

T-Swivel clamp mountings GN 483 can be combined with swivel clamp mountings GN 482 and attachment clamp mountings GN 484 with the same k dimensions into articulated swivel clamp mounting joints. Clamping kits GN 511.1 with screw, type S and adjustable hand lever, type K are available for this purpose (description see table of dimensions).
