Information

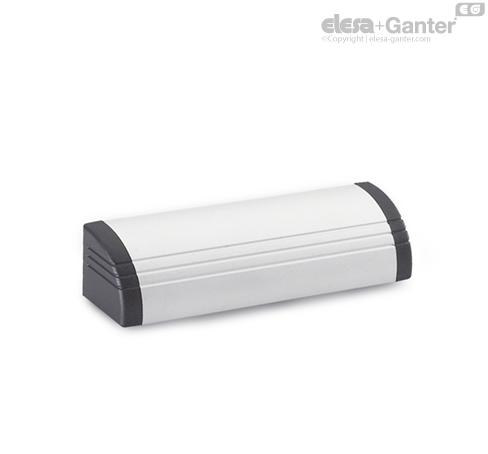

Typical applications for ledge handles GN 430 include swivel or sliding doors on protective doors and equipment. They are also suitable for use as drawer handles.
The screw channel for screw sizes M6 allows an optional number of fixing screws in any position within the dimension l2.
Any length of the aluminum profile can be delivered and single end caps can also be delivered. Special lengths can be manufactured from relatively small quantities upwards.
Information on fastening with a screw channel
Thanks to the screw channel which runs all the way through, any number of screws with standard thread M6 can be placed in any locations within the screw area l2. Please note the following guide values:
- Minimum screw-in depth: 10 mm
- Max. tightening torque: 4 Nm
