ETH-AN
ETH.

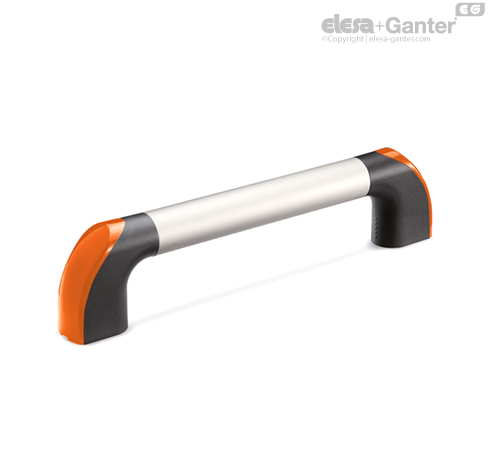

Tubular handles
Technopolymer and aluminium
Anodised aluminium tube
Technopolymer and aluminium
Anodised aluminium tube

78711-R,20
78710-R,10
78712-R,50
orGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
Glass-fibre reinforced polyamide based (PA) technopolymer, matte finish.
Available also as accessory sold separately (see table).
Special expansion-assembly system between the tube and the handle shanks to prevent rotation during operation.
Pass-through holes for cylindrical-head screws with hexagon socket, hexagonal-head screws or standard lock nuts.
Suggested tightening torque:
The large diameter of the tube offers a good and comfortable grip; the antirotation assembly system of the handle shanks to the tube has been developed to offer a firm and secure manœuvrability during operations.
Tensile stress: F2 values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
Different lengths.
Code | Description | d2 | h | h2 | h4 | For handle | ![]() |
15251 | DS-ETH.35-16 | 4 | 16 | 101.5 | 12.5 | ETH.35 | 24 |
15253 | DS-ETH.35-32 | 4 | 32.5 | 118 | 15 | ETH.35 | 45 |
