Main specifications
Material

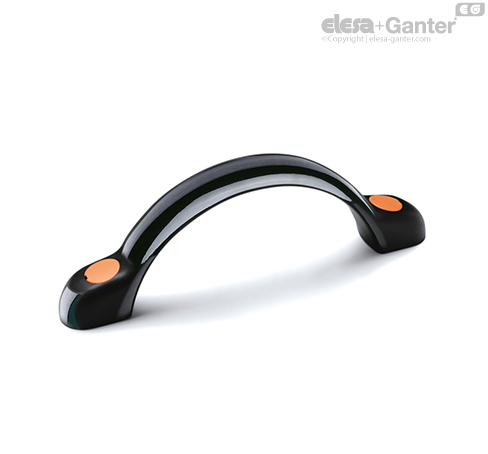

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, glossy finish.
Screw-covers
- ECA.B: glass-fibre reinforced polyamide based (PA) technopolymer, in Elecolors colours, matte finish, press-fit assembly. Supplied, removable by a screwdriver.
Available also as accessory sold separately (see table).
Standard executions
- M.479/150-8: pass-through holes for cylindrical-head screws with hexagon socket.
Screw covers to be press-fit assembled.
- M.479/150 B-M8: brass bosses, threaded holes.
Screw covers supplied assembled.
General information
Technical data
Tensile stress and impact strength: F1, F2, L1 and L2 values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
