Main specifications
Material

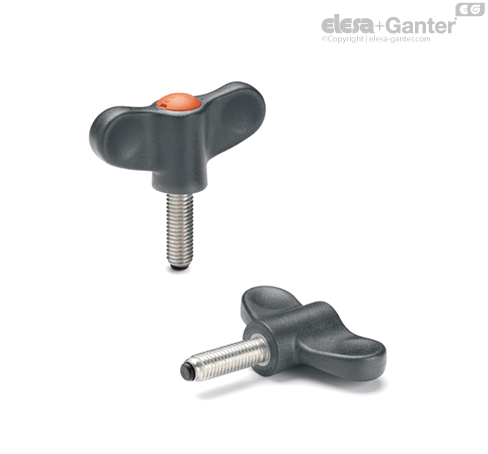

Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.
Boss cap
- ECA.W: glass-fibre reinforced polyamide based (PA) technopolymer, in Elecolors colours, matte finish, press-fit assembly. Supplied, removable by a screwdriver.
Available also as accessory sold separately (see table)
Standard executions
- EWN-SST-p-PO: AISI 303 stainless steel threaded stud, acetal resin (POM) pad.
- EWN-SST-p-PB: AISI 303 stainless steel threaded stud, brass pad.
General information
Features and applications
The chamfered end with bolt avoids to damage the surface of contact even in case of strong clamping.
Standard executions either with brass or acetal resin pad.
Ergonomy and design
The slightly concave marks on the wings help to position the fingers in order to apply the maximum force when tightening.
