Main specifications
Body
Polyamide based (PA) technopolymer, black colour.
Protective shield
Polyamide-based (PA) technopolymer, grey colour.
Bearing
Chrome steel.
General information
Features and applications

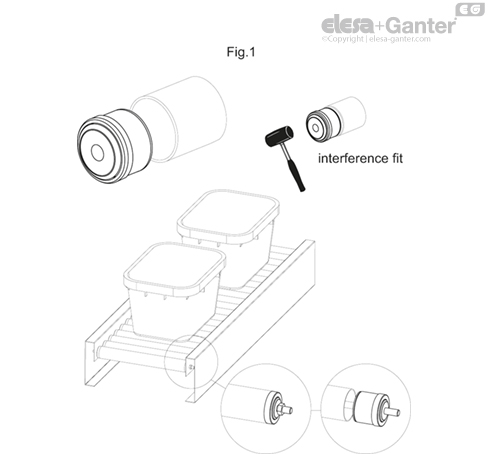

Bearing supports for GVI idler rollers are inserted into the ends of the tubes of the conveyor rollers (Fig.1).
Recommended maximum load: 200 [N].
Special executions on request
Special executions on request
- Versions for tubes with an external diameter of 60 mm and an internal diameter of 54.5, 56 and 57 mm.
