Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Standard executions
- BAS2-A: zinc-plated steel M10 screws, nuts and washers.
- BAS2-SST: AISI 304 stainless steel M10 screws, nuts and washers.
Assembly on levelling elements

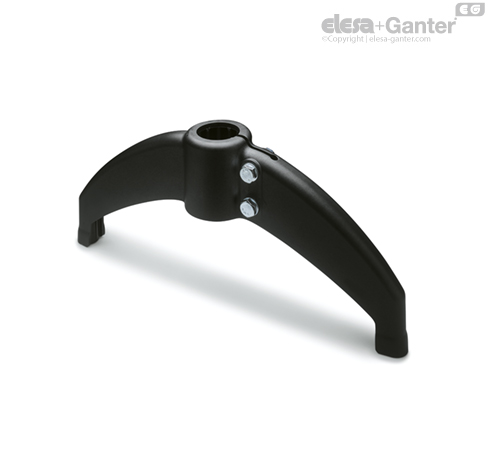

The bipod support bases are supplied with brass bosses, threaded pass-through hole for the assembly of the stem of the levelling element series LS.A, LV.A, LV.F.
General information
Features
The rounded shapes with a modern and elegant aesthetic guarantee maximum cleanability in the event of liquids or dust falling from above.
Maximum tightening torque for screw assembly 35 Nm.
