Main specifications
Body and external bushing
Polyamide based (PA) technopolymer, black colour.
Protective shield
Polyamide-based (PA) technopolymer, grey colour.
Bearings
Chrome steel.
General information
Features and applications

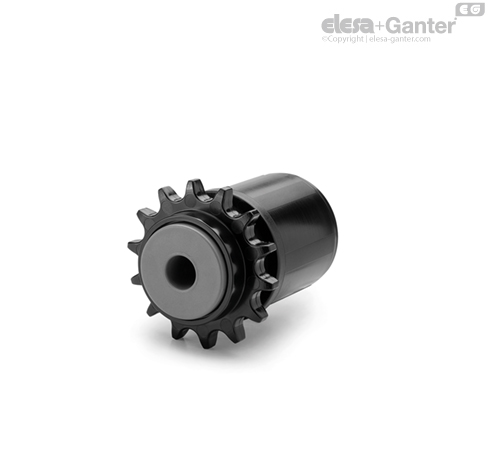

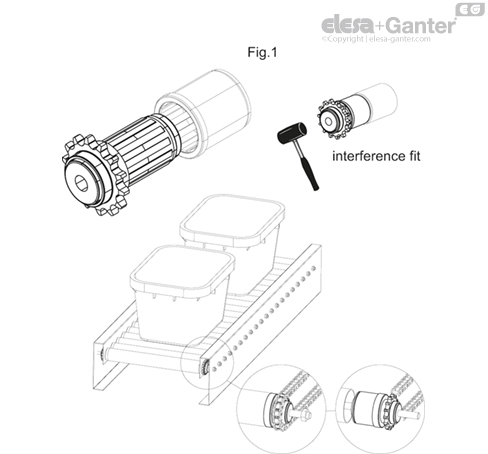

Bearing supports for GVD motorised rollers are inserted into the ends of the tubes of the conveyor rollers (Fig.1). Drive sprocket with 14 teeth for roller chain type DIN 8187-08-B1.
Recommended maximum load: 200 [N].
Special executions on request
Special executions on request
- Versions for tubes with an external diameter of 60 mm and an internal diameter of 54.5, 56 and 57 mm.
