Main specifications
Lock
With opposing blades and double profile key with internal track, (to be ordered separately, see below keys kit). 9.791 different lock combinations.
Stator and rotor
Chrome-plated zinc alloy with drill-proof hardened steel plate and stainless steel front plate.
Nut
Brass M19x1
Toothed washers
For zinc-plated steel stator, for steel screw.
Closing lever
Zinc-plated steel, thickness 2.5 mm.
Nut
Brass.
Screw
Zinc-plated steel (only for executions CS-RPR.32-30 and CS-RPR.36-35).
Rotation
180°, with key removable in two positions.
Keys kit
The KCR keys kit (to be ordered separately) consists of a brass programming key and some nickel silver keys for normal use.
- KCR-05: 1 programming key and 5 keys for normal use.
- KCR-10: 1 programming key and 10 keys for normal use.
- KCR-01: 25 keys for normal use.
Instructions of use
Features and applications
The CS-RPR are supplied non-programmed with the rotor positioned in line with the index marked on the stator front surface.

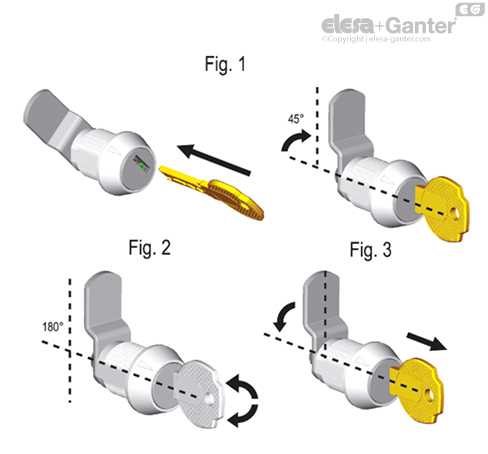

- First programming: insert the programming brass key and turn the lock clockwise by 45° (Fig.1). The lock is now programmed. Insert the normal use key in nickel silver to lock or unlock the latch (Fig.2).
- Reprogramming of the lock: insert the brass programming key used at first and turn the lock anticlockwise by 45° until the rotor is in the neutral position (Fig.3). Remove the key, insert now a new programming key (new kit) and turn it clockwise by 45° (Fig.1).
Now the lock has been reprogrammed with a new combination and the nickel silver normal use keys, included in the kit of the new programming key, must be used to lock or unlock the latch (Fig.2).
