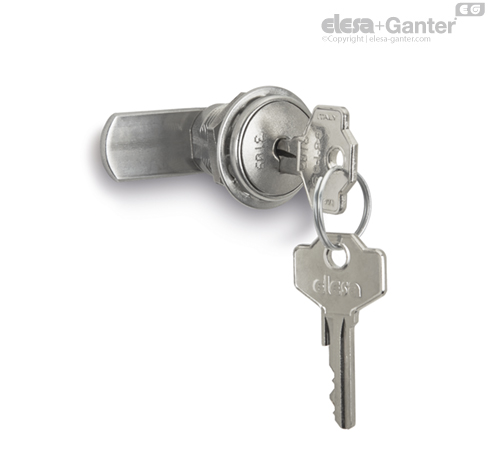

CS-SST

Lever latches with lock key

Stator and rotor

AISI 316L stainless steel.

Front plate

Stainless steel.

Nut

M19x1 in AISI 303 stainless steel.

Flat spring washer

AISI 304 stainless steel.

Internal toothed washer

AISI 430 stainless steel.

Closing lever

AISI 304 stainless steel, 2.5 mm thickness.

Assembly by means of AISI 304 stainless steel hexagon nut M6x0.75.

Rotation

180°.

Two keys

Nickel-plated brass, removable in two positions at 180°.

IP protection

IP 65 protection class, according to EN 60529).

Standard executions

• CS-SST: lock with 400 different combinations: each lock has a couple of keys.
• CS-M-SST: lock with 190 different combinations and master-key; each lock has a couple of keys. Two master-keys, which open all of them, are supplied for every purchase order;
• CSU-SST: lock with one combination. All locks have the same combination and can be opened with the same key. Each lock has a couple of keys.
