Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer with security anti-intrusion-profiled slot, black colour, matte finish.
Locking bar
AISI 304 stainless steel with technopolymer push button. Side end in red colour.
Standard executions
- CKE.40 CH: pass-through holes for M5 cylindrical-head screws.
- CKE.40 B: brass bosses, threaded blind holes.
Security key (to be ordered separately)
- CSN: acetal resin based (POM) technopolymer fold-away key, red colour, anti-intrusion-profiled stainless steel insert.
- CSF: polyamide based (PA) technopolymer ball key, red colour, anti-intrusion-profiled stainless steel insert.
- CWL: acetal resin based (POM) technopolymer size increased fold-away key, red colour, stainless steel insert.
Instructions of use

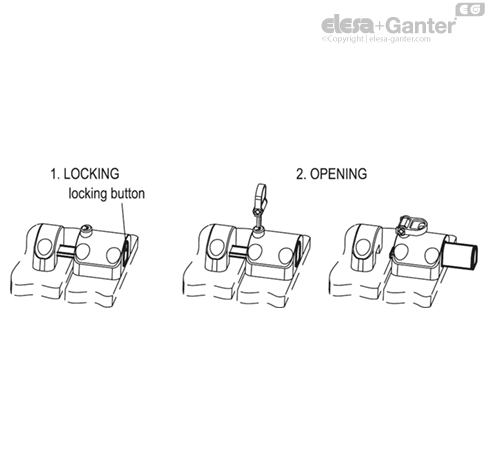

Functioning of the safety device
Doors with CKE. locking bolt assembled can be opened only by authorised people provided with the proper anti-intrusion-profiled key.
- Locking: press the locking button until the red side end of it disappears completely into the body and the device snaps. The key must not be inserted during locking operations.
- Opening: insert the key (without turning it) and push to make the internal device snap.
