APC

Assembly kit for round tubes

Features and applications

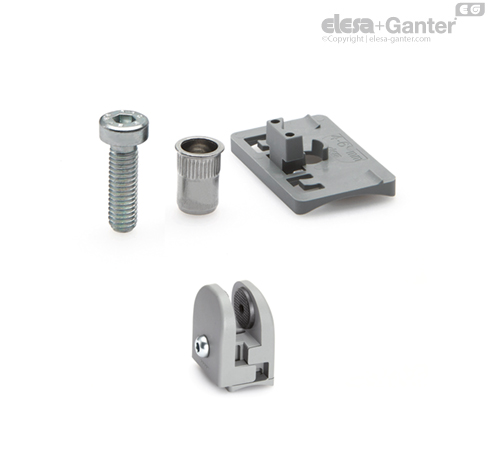

Kit for installation of PC support clamp on round tubes (thickness max. = 2 mm). The kit includes a technopolymer adapter, a M6 zinc-plated steel threaded insert to install with a normal riveter on the tube and a M6 cylindrical head screw.The adapters give the best aesthetic result for panels of thickness between 4 and 6 mm and tubes with diameters as follows:

• 30÷34 mm
• 40÷43 mm
• 48÷52 mm.

Assembly instructions

• Insert the M6 shorted cylindrical head screw with DIN 7984 hexagon socket into the plastic adapter.
• Insert the adapter into the slot of PC until the catch bracket clicks into position.
• Drill a hole in the tube of 9 mm.
• Fit the threaded insert on the tube with a riveter.
• Install the support clamp on the tube by tightening the screw into the threaded insert.
