PPR

Support clamp for panels and electro-welded mesh

Features and applications

• PPR.25: for square profiles of 25 mm or 1".
• PPR.30: for square profiles of 30 mm.
• Rubber vibration-damping pads to ensure the locking of the panel even in the presence of strong vibrations and for the different dimensional tolerances compensation.
• The distance of 7.5mm of the panel with respect to the profile avoids areas of dirt accumulation.
• Safety in compliance with ISO 13857, paragraph 4.2.4.

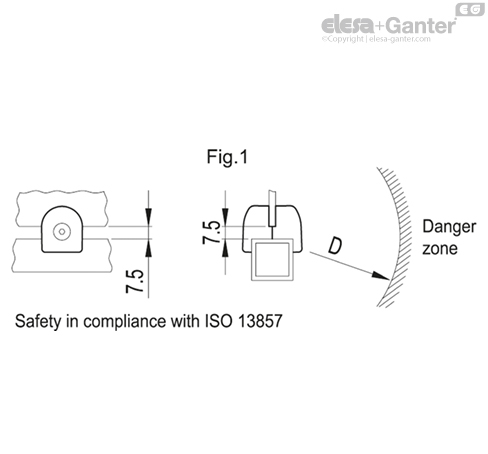

• The safety distance (D) is the minimum required distance between the protection structure and the potentially dangerous element of the machine (Fig.1).

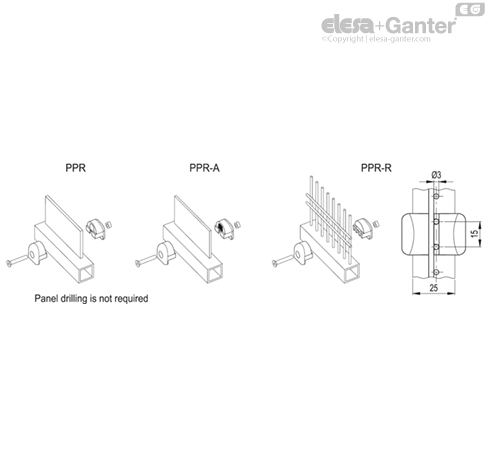

Assembly of the clamp on the profile

Panel drilling is not required for mounting.

Tighten the clamp against the profile and the panel or the electro-welded mesh using the screw and the nut included in the package.
