General information
Assembly instructions
- Select the latch with shank length (l) according to the following condition l ≥ S+b+15 mm (S = thickness of the door, b = thickness of the ledge).
- Drill a hole in the door following the supplied template.
- Drill a hole in the shank for pinning at "f" distance:
- Fit the shank in the hole on the door and assemble the other components.

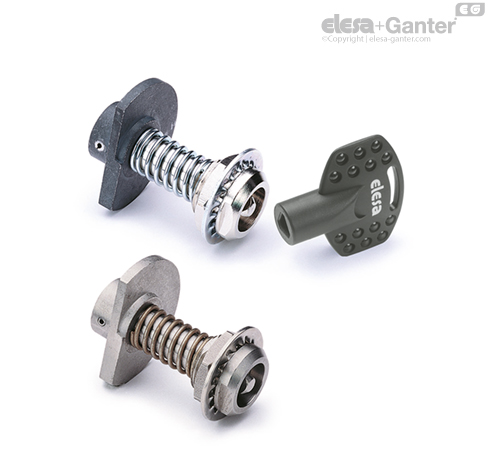

BOCK. latches are supplied not assembled.
