Main specifications
Case
Zinc-plated steel.
Bezel
AISI 303 stainless steel.
Window
Glass.
Dial
Natural matte anodised aluminium.
Clockwise (D) or anti-clockwise (S) graduation, black colour.
Reading

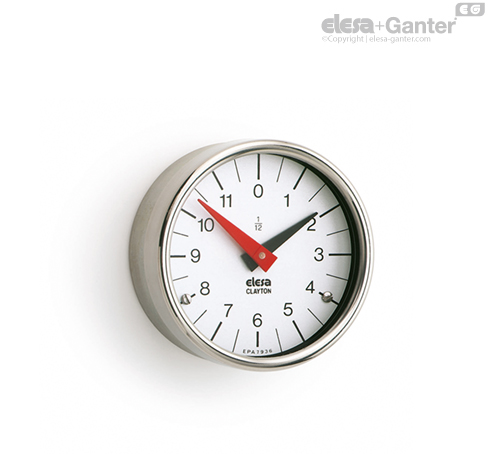

The black pointer indicates the number of turns of the spindle from the start position (0); the red pointer indicates the fractions of turn.
Ballrace rotation: maximum reading accuracy.
Ratio
To choose the ratio see "Gravity position indicators introduction"-.
General information
Features and applications
The knobs with integral gravity position indicator are suitable on spindles with horizontal or max 60° inclined axis.
To choose the handwheel see the table "Handwheels/knobs-possible assembly with indicators"-.
Special executions on request
Special executions on request
- Special dial with logo or customized graduations
- Special ratios
- Filling with paraffin oil, maximum continuous working temperature 40°C
- Single pointer
- Window in plexiglass instead of glass.
