Main specifications
Case
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Moulded-in spindle.
Bezel
Technopolymer. Moulded over the window.
Window
Transparent polyamide based (PA-T) technopolymer (practically unbreakable).
Resistant to solvents, oils, greases and other chemical agents (avoid contact with alcohol during cleaning operations).
Dial
Natural matte anodised aluminium.
Clockwise (D) or anti-clockwise (S) graduation, black colour.
Reading

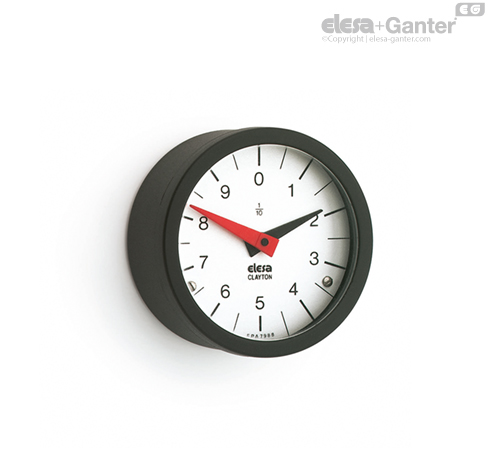

The black pointer indicates the number of turns of the spindle from the start position (0); the red pointer indicates the fractions of turn.
Ratio
To choose the ratio see "Positive drive indicators introduction"-.
IP protection
The ultrasonic welding of the window to the case guarantees the complete sealing with IP 65 protection class, see EN 60529 table.
General information
Features and applications
Digital-analogue positive drive indicators are suitable with spindles in any position.
To choose the handwheel see the table "Handwheels/knobs-possible assembly with indicators"-.
Special executions on request
Special executions on request
- Special dial with logo or customized graduations
- Special ratios
- Single pointer
