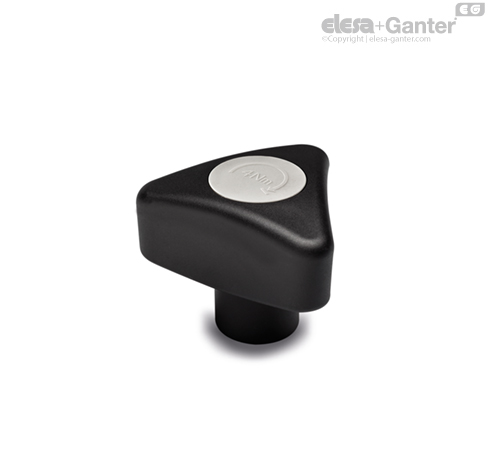

Torque limiting knobs
Technopolymer
Technopolymer

78711-R,20
78710-R,10
78712-R,50
orGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Polyamide-based (PA) technopolymer, RAL 7035 grey colour, matte finish.
Hardened steel.
Zinc-plated steel boss with threaded blind hole.

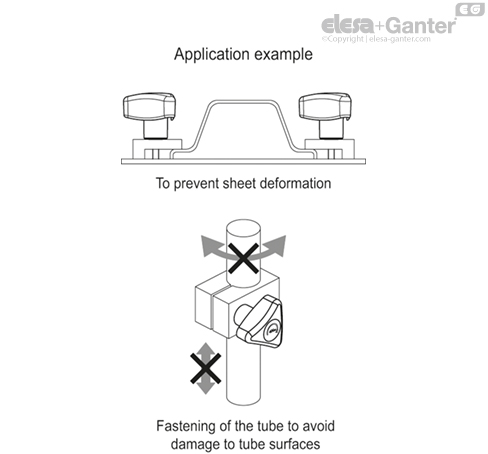

VTD knob is used when the applied tightening torque must not exceed a certain value.
The transmission of the torque from the knob to the clamping element takes place by means of a spring system which, upon reaching the required torque, releases the knob. When the established torque is exceeded, a "click" will be heard to indicate that maximum tightening has been achieved.
By turning the knob anticlockwise the mechanism (Elesa patent) unlocks.
The knob has been tested up to 60000 tightening cycles and the values of the torque were unchanged.
