MPI-R10 the magnetic measuring system is a complete system for the measurement of linear and angular displacement. The multiple functions of the display, connected to the dedicated sensor FC-MPI, allow MPI-R10 to adapt to various types of measuring,
making the whole system suitable for different measuring and cutting machines.

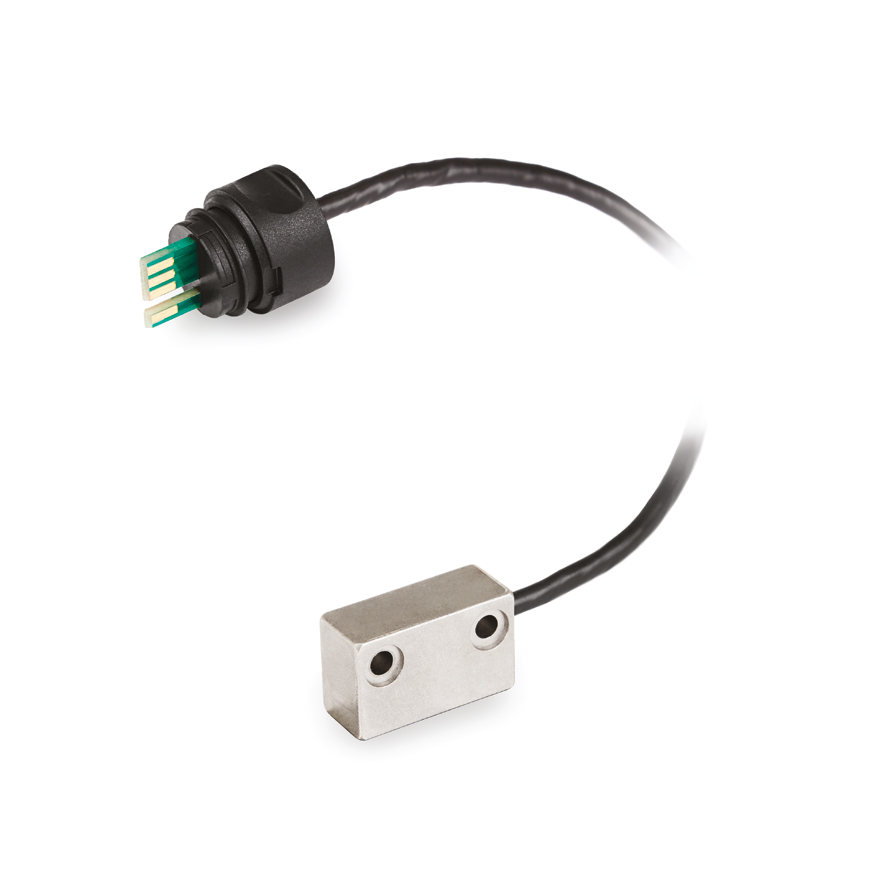

FC-MPI sensor, moving along the magnetic band M-BAND, allows precise alignment and positioning, reducing time and machining procedures to the minimum. The sensor is also characterised by a snap-in assembly for a quick and easy connection to the display.
Magnetic measuring system
- Absence of contact between moving parts
- IP54, IP67 protection level.
- No wear: no need of maintenance.
- Not affected by moisture, dust, oils and process residues.
- Insensitive to vibrations.
Display
- Multifunction 7 digit LCD with 4 function keys. Absolute / incremental mode.
- Programmable measuring unit.
- Linear and angular displacement.
- Up to 10 programmable offset.
- 32 programmable target position.
Magnetic sensor
- Replaceable snap-in cable with multiple lengths.
- Programmable operating speeds from 1 to 5 m / s.
- Distance between sensor and magnetic band to ensure a correct reading of the displacement: 1 mm max.

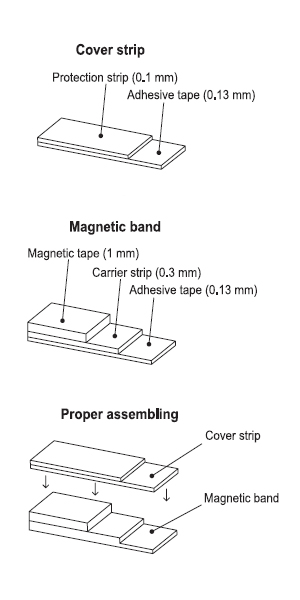

Magnetic band
- Magnetic pole pitch 5 mm.
- Easy assembly thanks to the adhesive tape.
- Cover strip for protection against possible mechanical damages.
