Specification
Types

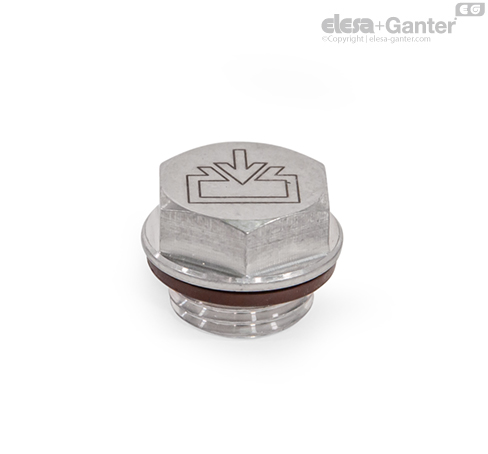

- Type E: With DIN fill symbol
- Type A: With DIN drain symbol
Identification no.
- No. 1: Without vent drilling
Stainless steel AISI 316L
Precision turned, plain finish
Seal
Fluoro-elastomer (FPM / FKM)
- Temperature resistant up to 180 °C
Information

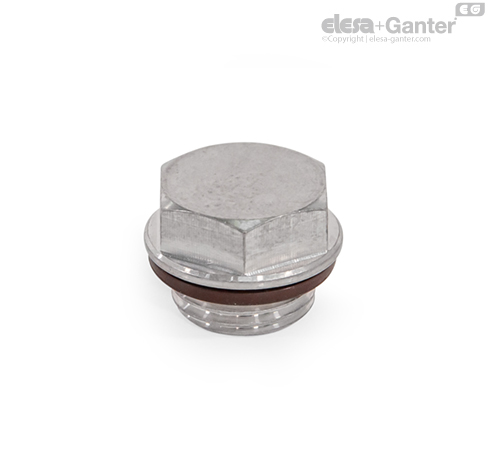

Stainless steel threaded plugs GN 742.5 can be used in particularly aggressive environments thanks to the material used.
The seal is embedded in a radial recess and thus cannot be lost, squeezed out or overloaded during tightening.
The outer diameter d1 of the stainless steel threaded plugs GN 742.5 is matched to screw-in holes for pipe fittings according to DIN 3852.
