Specification
Identification No.
No. 2: With stainless steel socket cap screws DIN 912
Version in Aluminum
Powder coated
Black, RAL 9005, textured finish SW
Plain finish, matte shot-blasted BL

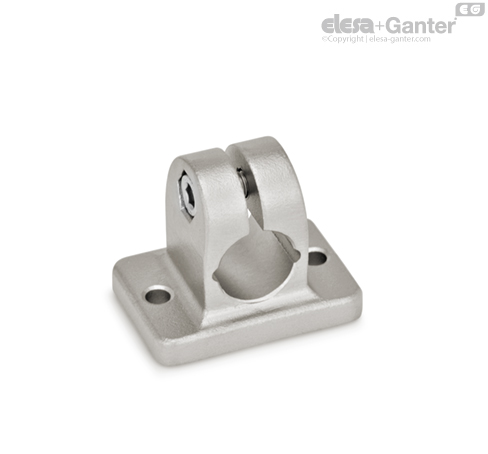

Version in Stainless Steel
Stainless steel AISI CF-8 NI
Matte shot-blasted
Socket cap screws DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
Information
The clamping bore of flanged connector clamps GN 145 are mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.
Flanged connector clamps GN 145 can also be mounted to profile systems.
At the screw location z, the socket cap screw reduces the bore cross-section for clamping.
For clamping without tools, the socket cap screw can be replaced by an adjustable hand lever GN 911 / GN 911.3 listed in the table as accessory.
