GN 939-E
GN 939
Panel Support Clamps
Zinc Die Casting, for Glass and Plastic Panels
Corner clamp
Zinc Die Casting, for Glass and Plastic Panels
Corner clamp

78711-R,20
78710-R,10
78712-R,50
orGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
Zinc die casting ZD
Powder coated
Clamping screws
Stainless steel AISI 304
Rubber inserts
Acrylonitrile butadiene rubber (NBR)
Stop plate (type FA)
Stainless steel AISI 316L
Securing pins (type EB and FB)

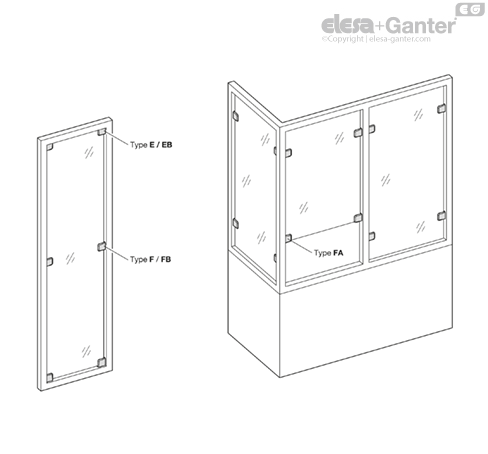

Clamps GN 939 are used to fasten panels of glass, plastic or other materials. Both corner and surface clamps are available, depending on the installation situation.
The panels are clamped between the rubber inserts. In addition, positive locking by means of a securing pin or stop plate can be selected as a type.

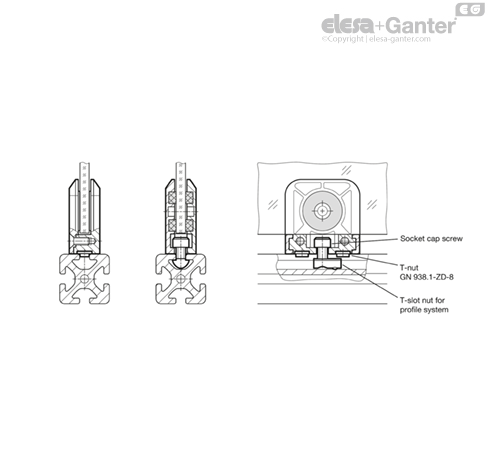

If the clamps are used with profile systems with 8 or 10 mm slots, the T-nuts GN 938.1 are available as mounting accessories. These enable simple alignment, secure the clamps against rotation and counteract possible stresses.
