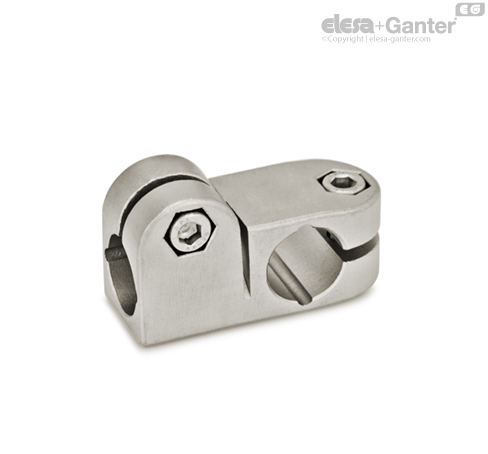

GN 191-NI T-Angle Connector Clamps Stainless Steel

The clamping bores of T-angle connector clamps GN 191 are mechanically machined and designed for construction tubes GN 990  or DIN 2391, DIN 2395 and DIN 2462.

At the screw locations z₁ / z₂, the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 / GN 911.3  listed in the table as accessories.

• Adjustable Hand Levers GN 911  / GN 911.3

• d₁ / d₂ with unequal bores

• Stainless Steel Characteristics
