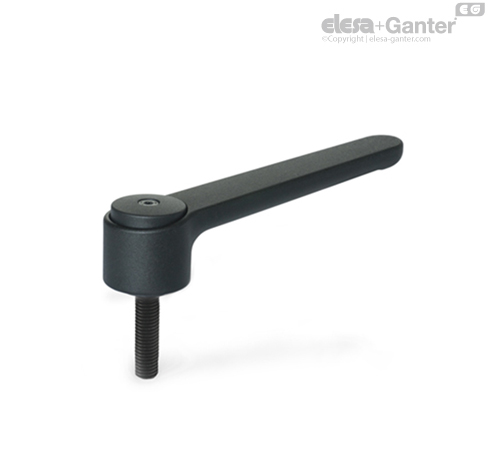

GN 126 Adjustable flat tension levers Adjustable flat tension levers with threaded stud

Adjustable flat tension lever GN 126 is characterized by their low height and the timelessly elegant design.

They are ideal whenever swiveling in a confined space is required or the lever is to be clamped in a particular position. The threaded insert / bored bushing is moveably attached to the handle with serrations.

Pulling the lever disengages the serrations, allowing it to be swiveled to the ideal clamping position. On “releasing” the handle, the serrations reengage automatically.

• ISO-Fundamental tolerances

• Stainless Steel characteristics
