Specification
Types
Identification no.
- No. 2: Stud with external thread
- No. 3: Stud with internal thread
Outer race
Plastic, polyacetal (POM)
Operating temperature: -20 °C to 100 °C
Stud
Steel, zinc plated
Information

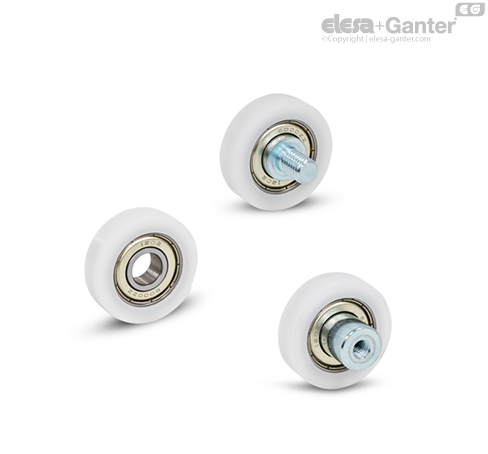

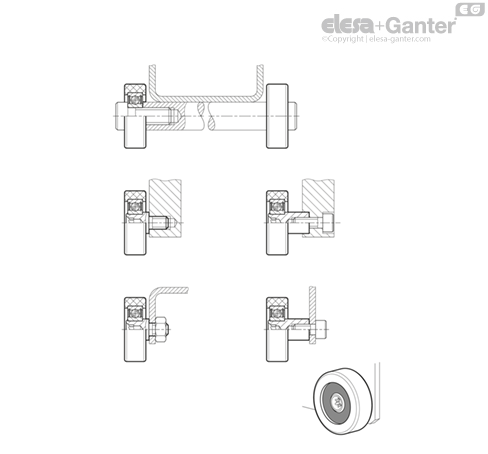

Guide rollers GN 753.1 can be used as guides, bearings or supports for small to medium loads. They can also be used to create custom linear guide rail systems.
The radial load capacity rating given in the table should be understood as a guide value at which the guide rollers achieve a lifetime performance of at least 200,000 m. The conditions for achieving this lifetime performance are a speed of 0.4 m/s, a clean, dry, level, smooth and hard surface to roll against and an operating temperature between 15 °C and 30 °C. In general, the guide rollers should not be used under axial load.
